Installing pavers over shell in Florida takes more than a hard-looking surface. I want a foundation designed for the paving system, the ground conditions, and the weight it will carry.
That means looking below the shell and planning drainage before choosing the finished pavers. Start with the support underneath, because a beautiful surface still depends on solid preparation.
Key Takeaways Before You Start
A compacted-looking shell surface doesn’t establish the depth or strength of the foundation below.
Base depth depends on traffic, soil conditions, and drainage.
Bedding sand and edge restraints have separate jobs, and neither can repair a failing foundation.
What Matters Before Installing Pavers Over Shell?
I wouldn’t approve a project based only on the surface appearance. The important questions concern the whole installation.
Look Below the Surface
A firm surface doesn’t show the thickness or condition of the layers underneath. Check that the compacted shell is uniformly firm, deep enough, and free of ruts, shifting, and soft spots.
Confirm the shell is properly compacted and correct weak areas before laying pavers. Pedestrian areas need less support than surfaces that carry vehicles, which face added weight, braking, and turning forces.
Central Florida’s sandy soil can shift beneath poorly supported surfaces. In Southwest Florida, heavy rainfall, erosion, and disturbed fill also deserve attention. Our paver installation preparation guidance explains why the work starts below the finished surface.
Give Rainwater a Clear Route
Look for collection points after storms and check how water drainage moves across the property. Low spots near a house, garage, or screen enclosure need attention before paving begins.
I plan the finished grade around a suitable drainage route, away from the home. A surface can look even and still send water in the wrong direction.
Soft areas, washouts, and soil that moves under equipment can indicate ground movement or soil shifts. Correct these conditions before paving, or they may cause settlement beneath your new patio.
Build Around the Complete Paver System
For conventional aggregate-base installations, each layer has a separate purpose. The CMHA aggregate-base specification describes concrete pavers and bedding sand supported by compacted aggregate. This guidance isn’t a shell-specific installation detail.
Match Base Depth to the Project
A four-inch base of compacted aggregate is one conventional example for a pedestrian area, measured after compaction. That example doesn’t establish a shell-base depth or a universal requirement for every property or driveway.
A compacted base needs uniform support and proper compaction, but aggregate measurements don’t establish shell-base depth. Shell suitability depends on its condition, the underlying soil, drainage, and intended load. Pedestrian areas and vehicle-loaded surfaces need different designs. Our Florida paver base depth guidance explains those differences. For a conventional aggregate base, material goes down in controlled lifts, with compaction as work progresses.
Keep Bedding and Perimeter Support Separate
A conventional sand-set system commonly uses approximately 1 inch of concrete bedding sand above the prepared aggregate base. Keep the bedding layer thin and even; it can’t correct a weak base.
I don’t use extra bedding sand to hide deep depressions. Correct the structural base first so individual pavers receive even support.
The perimeter needs dependable support too. A properly anchored edge restraint limits outward movement, especially where vehicles turn; our paver edge restraints page explains anchoring. Loose bedding material can’t provide that support.
What If the Existing Surface Is Concrete?
An existing concrete slab needs a different assessment from shell. Pavers over concrete can work when the slab condition is sound, stable, and draining properly, but appearance alone doesn’t qualify it. A paver overlay also adds height, so check how it meets doors and adjoining surfaces.
Separate Surface Cracks From Movement
Hairline cracking and other surface cracking don’t automatically rule out an overlay. Structural cracking, a heaving slab, lifting, differential settlement, or a section that rocks underfoot changes the decision.
A crack that catches a fingernail deserves closer assessment, but that test doesn’t diagnose the cause by itself. Settling, root movement, or inadequate original base preparation may be responsible.
Check that the slab is level across its width, including edges and transitions, while retaining its drainage slope. I’d rather address movement underneath than cover it and leave you facing another repair. If the slab is unstable or beyond repair, demolition may be the better option.
Match the Overlay to Its Use
Patios and walkways can suit an overlay because they carry lighter loads, provided the added height works. A pool deck is a lower load application when the slab is flat and stable. A cracked or heaving driveway slab is a poor foundation for an overlay.
Review how water has drained across the slab over time. Existing ponding won’t disappear because the surface gets new pavers.
Covering a moving slab delays the repair; it doesn’t stop the movement underneath.
A sound slab still needs the selected overlay system’s bedding or setting method, drainage details, and secure perimeter restraint.
Frequently Asked Questions
Will Pavers Raise the Finished Surface?
Yes. Pavers and their setting assembly add height. Door thresholds, garage entrances, pool coping, and adjoining walkways all need room for that build-up.
Stair risers need attention too. I want those transitions planned before installation, so the finished work doesn’t create clearance problems or an awkward step.
Does Geotextile Replace Base Preparation?
No. Geotextile can separate soil and aggregate where conditions call for it, but it doesn’t replace stable ground, drainage, or compaction.
It isn’t required everywhere. Its purpose belongs in the foundation design, rather than being added as a general cure for soft soil.
Start With a Foundation Worth Building On
The decision about pavers over shell should begin with the complete foundation. Surface hardness alone doesn’t give me enough information to recommend the installation.
I put quality preparation first because the base, drainage, and perimeter support determine how well the finished work holds together.
For your Southwest Florida patio, walkway, or driveway, Get a Free Quote for a consultation and estimate.
The standard paver bedding sand depth is 1 inch, about 2.5 cm, over a properly compacted crushed-stone base. I recommend keeping that layer thin and consistent, because adding more sand gives the pavers more room to settle.
If you’re planning a paver patio, walkway, or driveway, the base underneath does the heavy work. Bedding sand helps position the pavers, but it cannot make weak ground strong.
Start with the right depth, then give each supporting layer the attention it needs.
Key Takeaways Before You Start
Use approximately one inch of coarse concrete sand over a conventional compacted aggregate base.
Pedestrian walkways commonly need 4 to 6 inches of compacted crushed stone underneath, with additional preparation where soil or drainage requires it.
Rigid panel systems commonly use a 1/2-inch sand preparation layer, while polymeric sand belongs in the finished joints, never beneath the pavers.
I recommend treating the base, bedding, and joints as separate parts of the job. Each material has a purpose, and substituting one for another can lead to expensive repairs.
How Thick Should Paver Bedding Sand Be?
One inch over a compacted stone base
For a conventional sand-set installation, screed the bedding layer to approximately 1 inch before placing the pavers. Alliance’s Eurostone bedding specifications identify one inch as the maximum bedding thickness for the described assembly.
That measurement is separate from the compacted aggregate below and the paver thickness above. A deeper excavation doesn’t mean you should fill the extra space with sand.
I recommend correcting low areas in the aggregate first. A uniform bed provides more consistent support across the finished surface.
Rigid panels use a different assembly
The familiar 1/2-inch recommendation usually refers to sand preparation for paver base panels.
Brock PaverBase uses approximately 1/2 inch of sand beneath its panels for suitable pedestrian applications. Alliance Gator Base is designed to replace 6 inches of conventional crushed stone, but its panel assembly differs.
These systems aren’t interchangeable with a traditional gravel base. The half-inch figure describes a particular layer within a panel installation, not a universal replacement for conventional bedding specifications.
Choose the Right Bedding Material
Coarse concrete sand or approved bedding stone
Use coarse concrete sand meeting ASTM C33, or a specialized bedding product specified for the paving system. The CMHA aggregate-base specification identifies ASTM C33 gradation for bedding sand.
Fine play sand doesn’t have the particle structure needed for a stable setting bed. Mason sand, stone dust, and limestone screenings also aren’t automatic substitutes, particularly where they retain water or move beneath the pavers.
Some Alliance assemblies permit ASTM No. 9 stone. That is an approved material choice within those systems, not permission to use any small gravel.
Keep bedding sand separate from joint sand
Polymeric sand contains binders and belongs between the installed pavers. It cannot replace bedding sand.
The material under the pavers provides an even setting surface. Joint sand helps the finished units interlock and limits movement between them.
I recommend keeping these materials separate when ordering, too. A bag labeled “paver sand” can cause confusion when the homeowner needs bedding material but receives a jointing product instead.
Prepare the Base and Drainage First
Compact the aggregate in controlled lifts
Many pedestrian patios and walkways start with 4 to 6 inches of compacted crushed stone base. That means finished compacted depth, not the height of loose stone dumped into the excavation.
Place well-graded crushed aggregate in manageable lifts, commonly 2 to 3 inches with residential equipment, and compact each lift. Rounded pea gravel doesn’t lock together the same way.
Compact the perimeter firmly so the edge restraint has stable support. Our guidance on outdoor kitchen base preparation explains why firm support matters before the setting bed goes down.
If aggregate shoves, ripples, or develops deep ruts under equipment, stop and correct the condition. Covering it with sand won’t solve the problem.
Build the slope into the supporting layers
A common drainage target is approximately 2%, roughly 1/4 inch per foot, away from the house and other vulnerable structures.
Build that grade into the prepared soil and aggregate. Keep the bedding thickness consistent instead of making a wedge of sand to create the slope.
In Southwest Florida, heavy rainfall, saturated soil, and erosion deserve attention during planning. I want runoff directed toward a suitable drainage area, not against a screen enclosure or into an already-wet corner. Managing water beneath the paving also helps limit water-related stress during freeze-thaw cycles in climates that experience them.
How to Screed a Consistent Bedding Layer
Screeding establishes an even setting bed. Take your time, because footprints, low spots, and uneven rail heights carry through to the pavers.
Establish the finished surface elevation with string lines or a laser. Account separately for paver thickness, the nominal 1-inch sand depth, and the compacted base.
Set two screed rails from the compacted aggregate at the intended sand-bed elevation. Measure their height above the aggregate in several locations.
Spread the approved sand and draw a straight board across both rails. Keep the board resting on the rails throughout the pass.
Remove the rails and fill their channels without disturbing the surrounding bed. Check the sand depth at several points and confirm it follows the intended grade, including any required slope.
Lay pavers while working from an installed surface. Avoid walking on the prepared sand, and repair any disturbed area before covering it.
I don’t compact a conventional loose sand bed before placing the pavers. Seat the installed pavers afterward with equipment suitable for the paving product, using a protective pad where required.
The nominal 1-inch depth is measured in the screeded bed before pavers are placed. After seating, the sand may settle or compact, so its final thickness can be slightly less. It isn’t a separate fixed 1-inch measurement.
Don’t add extra sand to compensate for expected settling. If the sand needs to be substantially thicker to meet your string line, correct the aggregate elevation before laying pavers.
Secure a compatible edge restraint on firm supporting base. Loose bedding sand cannot provide dependable anchorage for the border.
How Much Bedding Sand Will You Need?
Calculate bedding sand by area and depth, separately from aggregate and joint sand.
For a 1-inch layer, multiply the square footage by 1/12 foot to get cubic feet. Divide that result by 27 for cubic yards.
A 200-square-foot patio needs approximately 16.67 cubic feet, or 0.62 cubic yard, before handling losses. If the material comes in 0.5-cubic-foot bags, that equals 34 bags before additional allowance.
I recommend allowing for handling losses in the order rather than making the installed bed thicker. Joint-sand quantities require a separate calculation based on joint width, depth, and paver dimensions.
Finish the Joints After Setting the Pavers
Fill the joints to the required depth
For conventional interlocking pavers, sweep polymeric sand into completely dry joints, compact it into place, clear surface residue, and activate it with water.
Fill the joints through the required depth, commonly at least 1-1/2 inches. Finish approximately 1/8 inch below the paver surface or chamfer, rather than leaving loose material across the face.
Choose jointing sand based on the product’s published joint-width range.
Joint-sand product
Published joint-width range
Techniseal HP NextGel
1/16 to 2 inches
SRW SimplyTough
1/8 to 3/4 inch, up to one inch at intersections
The HP NextGel product information identifies its width range. Neither product is bedding material, regardless of joint size.
Properly filled joints can help limit water entry and reduce weeds, but they don’t eliminate freeze-thaw risk or guarantee weed-free paving.
Respect drying, temperature, and traffic limits
The pavers, joints, and sand must be completely dry before installation. SRW’s SimplyTough installation guidance advises waiting 24 hours after rain.
Alliance G2 sands have a 32°F minimum application threshold. Techniseal NOCO, a no-compaction joint product, requires temperatures above 50°F for 48 hours after installation.
Techniseal HP NextGel and SmartSand require keeping vehicles off the new surface for 48 to 72 hours. These are product-specific restrictions, not one universal cure time for every polymeric sand.
I recommend planning the joint work around a suitable weather window. Rushing wet joints can create surface residue, poor bonding, and unnecessary cleanup.
Common Questions About Sand Under Pavers
Is 2 inches of bedding sand too much?
For the conventional 1-inch assemblies discussed here, yes. A 2-inch layer gives the pavers more opportunity to settle unevenly.
Lift the affected area and correct the aggregate elevation. Adding joint sand above the pavers won’t repair excessive bedding depth underneath.
Does a driveway need thicker bedding sand?
A driveway needs stronger structural support, not a deeper loose setting bed. Residential driveways commonly use 6 to 8 inches of compacted aggregate, with more support where ground conditions or loads require it.
The setting bed generally remains about one inch. Vehicle-rated pavers, proper compaction, and restrained edges also matter.
Do permeable pavers use ordinary bedding sand?
Permeable systems use a different supporting assembly, often with clean, angular bedding stone and open-graded aggregate.
Ordinary fine sand can restrict infiltration. Our permeable paver driveway guide explains how those drainage layers differ.
What happens if bedding sand is skipped?
In a conventional sand-set assembly, omitting the specified bedding layer leaves uneven support beneath the units. Pavers can rock, shift, and settle at different heights.
Water can collect in the resulting low areas, and the surface may need early repair or complete reinstallation.
A Thin Bedding Layer Starts With a Strong Base
For conventional pavers, keep the bedding layer at approximately 1 inch over a firm, properly graded aggregate base. Consistent thickness matters more than adding extra sand.
I recommend putting your effort into soil preparation, compaction, drainage, and perimeter support. Those details protect the finished surface long after installation.
For help with your patio, walkway, or driveway, Get a Free Quote from Platinum Pavers of SWFL. I welcome the opportunity to help you plan a durable installation.
For standard concrete pavers, 1/8 inch is a common starting point, not a universal rule. Typical joints range from 1/16 to 3/16 inch, depending on paver type, laying pattern, manufacturer specifications, and compatible joint filler.
I recommend choosing the spacing and joint filler together, since the joints need proper support and drainage. Start with the numbers below, then match the installation method to your patio, walkway, or driveway.
Key Takeaways
Standard concrete pavers commonly use 1/8-inch joints with compatible jointing sand or polymeric sand.
Permeable paving uses clean, crushed angular stone in the joints, with open-graded drainage layers underneath.
Polymeric sand has product-specific width limits, so one brand’s recommended range doesn’t apply to every bag.
Stable pavers, secure edges, dry surfaces, proper compaction, and controlled watering all matter. Fresh joint sand can’t repair a failing base.
Paver Joint Width: Quick Reference
These ranges help you match the gap size with the material that belongs inside it.
Paver or joint type
Typical width or product range
Matching joint material
Standard concrete pavers
1/16 to 3/16 inch; 1/8 inch common
Specified jointing sand or compatible polymeric sand
Permeable joint around 1/4 inch
System-specific; Unilock lists ASTM #9 for joints 1/4 inch or less
Clean, crushed angular chip stone
Permeable joint up to 1/2 inch
System-specific; Unilock lists ASTM #8 for joints 1/2 inch or less
Clean, crushed angular chip stone
Calstone narrow-joint permeable system
4 mm
System-specified permeable aggregate
SmartSand polymeric sand
Ideal range of 1/16 to 3/8 inch
Product-compatible conventional joints
HP NextGel polymeric sand
Ideal range of 1/16 to 1 inch
Product-compatible conventional joints
The important distinction is between a paver spacing requirement and a joint-filler capacity. A sand that handles a 1-inch gap doesn’t mean your concrete pavers should sit 1 inch apart.
Measure the joint size at the actual opening between paver bodies, and follow the system’s specifications. A beveled edge makes the surface opening look wider, and decorative false joints aren’t necessarily full-depth gaps between separate units.
Keep the spacing consistent across the pattern. Don’t squeeze the last few joints closed to avoid cutting a border piece.
Which Joint Filler Fits Your Concrete Pavers?
Standard joints need compatible sand
For a sound, conventional patio, I often recommend polymeric sand when the product suits the installation. Its water-activated binders help resist washout, limit weed growth, and reduce loose spaces where ants become a nuisance.
Conventional loose sand remains an option where the paving system specifies it, but it stays loose and may need more replenishment. Bedding material and material swept into the joints serve different purposes, so don’t treat them as interchangeable.
Polymeric sand also isn’t grout. Keep it inside the joints rather than spreading a thin coating across the paver faces.
Product limits decide whether the sand fits
Sakrete describes its polymeric jointing sand as working best in joints between 1/4 inch and 1.5 inches. Wider joints take longer to harden. That guidance belongs to its product, rather than every polymeric sand available.
For a common 1/8-inch concrete paver joint, SmartSand’s stated 1/16-to-3/8-inch ideal range includes that opening. HP NextGel’s stated ideal range also includes it.
For narrow joints, I’d select a compatible product rather than widen a standard layout to suit a different sand. Check the bag’s minimum width, maximum width, and required installation depth before choosing.
A polymeric sand’s maximum joint width is a product limit, not a recommended spacing for every paver.
What Makes a Paver Joint Permeable?
Joint width and open area work together
Unilock describes a permeable paver as having joints at least 1/4 inch wide and a void space ratio of at least 4 percent. That percentage describes the surface area available for rainwater to enter.
This isn’t a universal minimum for every engineered system. Calstone’s narrow-joint permeable system uses 4 mm joints and reports initial infiltration above 150 inches per hour.
The distinction matters. A narrow joint can belong to a designed permeable system, while an ordinary patio with widened gaps still lacks the drainage layers needed underneath. My permeable paver driveway guide explains how those layers work together.
Chip stone keeps the water paths open
Permeable joints use washed, crushed angular chip stone rather than ordinary sand. Unilock describes chip sizes ranging from 1/16 to 3/8 inch, with aggregate grading matched to the joint opening.
Clean stone leaves connected spaces for rainwater to flow quickly. Sand and accumulated fines can block those spaces.
Unilock reports a surface infiltration rate of 300 to 1,000 inches per hour for properly installed systems, measured under ASTM C1781. That infiltration rate is a surface-test result, not a measure of how quickly the underlying soil absorbs rainwater.
I recommend doing the support work before opening the sand bags. Rocking pavers, spreading borders, and low areas need repair first.
Set the pavers on stable support. Prepare and compact the base, establish drainage, and secure the perimeter. Lay the units with consistent joints. Filled joints and secure perimeter restraints provide lock-up against lateral movement. A decorative border still needs dependable support.
Prepare existing joints completely. For replacement work, Sakrete’s polymeric sand instructions call for removing old sand to the full paver depth. Pressure washing and sand installation shouldn’t happen the same day. Both the faces and joints must dry completely.
Sweep, settle, and refill. Work sand down through the joints rather than leaving a shallow cap. Use the compaction method permitted by the paving system, including a protective mat where required. Refill after settling until the joints are properly packed.
Finish below the surface and clean thoroughly. Sakrete calls for filling to within 1/8 inch of the paver top, or to the bottom of the bevel. Remove surface dust with a soft broom or carefully controlled blower before adding water.
For an older patio, replacing missing joint filler also means looking at why the material disappeared. Concentrated runoff or a loose edge can undo fresh sanding.
Don’t cover a designed isolation joint with polymeric sand. Those separation details may require compressible filler or flexible sealant instead.
Watering, Curing, and Sealing Without Haze
How much water should reach the joints?
Use the activation method specified for the sand, with enough water to wet the joint material without washing out its binder. There isn’t one universal gallon amount for every product, joint depth, and weather condition.
Sakrete recommends working in sections no larger than 10 feet by 10 feet. Stop before polymers float out onto the paver faces. That runoff can leave white haze and staining.
Too little water leaves poorly activated material below the surface. Too much can remove the binder that should stay in the joint. Finish filling and cleaning before activation, and don’t add fresh dry sand onto wet joints.
When can you walk, drive, or seal?
Sakrete’s guidance keeps pedestrian traffic off for 24 hours and vehicle traffic off for 72 hours after installation. Wider joints take longer to harden, so appearance alone isn’t a reliable cure test.
Keep irrigation away during curing and plan around Florida’s afternoon storms. A rushed application between rain showers can leave you with joints that need replacement.
Sakrete recommends applying a water-based sealer, such as Wet Look, after the sand has set, usually a few days later. The surface must also be dry and suitable for that sealer.
Sealing can protect the finished paving, but it won’t restore missing support or correct poor drainage. I recommend fixing those conditions before spending money on the final finish.
Frequently Asked Questions
Can you apply polymeric sand twice?
Yes, joints can be renewed, but don’t spread a thin new layer over failed material. For the Sakrete replacement method, remove the existing sand through the paver depth, allow complete drying, and refill properly.
If the joints failed because the pavers moved, repair that movement first. Another application won’t hold up loose bedding or replace washed-out base aggregate.
Does the same spacing work for bluestone?
Cut bluestone is a different material from molded concrete pavers. Contractor discussions commonly favor around 1/4-inch joints for cut stone because 1/8-inch spacing makes small dimensional differences more visible.
That is practical trade discussion, not a universal stone standard. Don’t transfer a concrete paver joint width directly to irregular stone, and choose joint filler rated for the actual opening.
Will polymeric sand stop all weeds and movement?
It reduces loose openings where seeds collect and helps resist joint washout, but it isn’t completely weed-proof or waterproof. Debris can still settle above the joints, and movement can create cracks.
Keep the surface swept and use controlled pressure when cleaning. A strong, narrow pressure-washer jet can remove joint sand and damage paver faces. Support underneath and restraint around the perimeter still carry much of the responsibility for a durable surface.
Build Consistent Joints on Solid Support
For standard concrete pavers, 1/8 inch is a useful starting point, with the final spacing matched to the paving system and joint filler. Permeable installations need compatible stone-filled joints and drainage layers working together.
I recommend repairing movement before sanding, then giving cleanup, watering, and curing the attention they deserve.
For help with your patio, walkway, or driveway, Get a Free Quote for a consultation and estimate.
A curve can make your driveway look beautiful, but turning tires put extra pressure on its edges. In Florida, plan the driving path, drainage, and gravel base before choosing colors or other hardscaping details.
Southwest Florida rain quickly exposes low spots. A driveway that looks smooth on installation day can develop puddles or shifting pavers if the ground beneath it wasn’t prepared for vehicles. Start the layout by marking where your cars need to drive.
Plan a curved paver driveway around your vehicles
Mark the route at full size
Lay a garden hose or flexible PVC conduit along the proposed outside edge. Mark the inside edge too, then check the turning radius from the street and garage. A curve that looks generous on paper can feel tight when you pull in.
I like to check where tires travel, not only where the car body fits. Test the route with your largest or most frequently used vehicle, and leave clearance at the garage and street connection. Make sure there’s room for walkways and landscape beds too, so tires don’t climb the border.
Check the property before excavation
Locate irrigation, drainage pipes, and other buried utilities. Contact 811 before digging. Confirm applicable city or county permits, right-of-way rules, and driveway-approach requirements with the relevant local authority. Garage thresholds, sidewalks, and existing curbs limit finished paver height, so check the route’s slope and drainage.
I wouldn’t order materials until those elevations are measured. Changing the curve later can change how much material you remove, along with the base stone, edging, and cut pavers you need.
Give the curve a pattern that stays together
Choose a radius that limits awkward cuts
A broad, consistent radius usually looks cleaner than a curve that tightens without a clear reason. Tight inside curves create more small cuts. Those little pieces can look busy and may be harder to secure where tires turn.
Choose paving stones and a pattern suited to driveway traffic, then lay them out before you commit. A 45-degree or 90-degree herringbone pattern is a dependable choice because the units interlock across traffic directions. Running bond gives you straight, simple lines, but I pay closer attention to the edge restraint in turning areas. If you’re considering patio pavers, verify they’re rated for vehicle use rather than assuming they’re suitable.
Keep the colors and border under control
One main paver color with a modest contrasting border can add curb appeal without making the curve feel busy. Too many textures and colors can make it look chopped into sections, especially in a smaller front yard.
A soldier course can frame the sweep and give cut field pavers a clean finish. It still needs proper support beneath it. The border should follow the curve smoothly without forcing thin slivers along the inside edge.
Set drainage elevations before choosing a base depth
Work from the finished surface down
Measure the garage, street, adjoining walkway, and planned landscape edge. Then set the finished paver height and calculate backward through the paver, bedding layer, and compacted base, allowing for expected compaction. Digging a certain number of inches everywhere won’t help if the finished driveway sends water toward your garage.
For a typical residential driveway, I often plan around a 2% surface slope where the site allows it. That’s about a quarter inch of fall per foot. It’s a planning target, not a universal Florida code requirement. The right direction and outlet depend on the property.
Give runoff a place to go
Check downspouts, irrigation, neighboring grades, and the low point of the curve. Direct the slope away from your home, and make sure the drainage route and outlet work together without sending water onto a neighbor’s property. On difficult sites, a swale or drain may be part of the drainage plan; the Department of Energy’s stormwater grading guidance explains why surface grading and drains must work together.
Pay attention to the inside of a sweeping curve. If both sides pitch toward that point, you may create a long puddle beside the border. I check each slope during installation, before the bedding sand and pavers hide the base.
Build a base for vehicle loads
Calculate excavation for every layer
A driveway needs more support than a curved walkway. The Concrete Masonry & Hardscapes Association application guide lists 6 to 8 inches of aggregate, or gravel base, as a general driveway starting range. Soil strength and traffic still determine the final design.
For many residential jobs, I start with 6 to 8 inches of compacted aggregate, about 1 inch of sand for the bedding layer, and vehicle-rated pavers. That gravel base measurement is after compaction and excludes the bedding layer and pavers. Loose or variable Florida sandy soils, disturbed fill, wet pockets, and utility trenches can affect support and drainage, so confirm base depth and preparation for the actual site.
A 60 mm concrete paver, about 2 3/8 inches thick, is a common choice for passenger-vehicle driveways. A product’s use as patio pavers doesn’t establish that it’s suitable for driveway loads. If you park a work van, trailer, or RV, discuss paver thickness and base design. A thicker paver alone won’t fix soft ground. My guide to paver base depth in Florida gives more detail on those starting ranges.
Compact the soil and aggregate in lifts
Remove roots, organic material, loose fill, and wet pockets. Shape the subgrade and check its compaction before placing aggregate. Use a plate compactor where conditions and access allow.
Previously disturbed areas deserve extra attention because utility trenches and old driveway repairs can settle differently from untouched soil. Plan drainage and slope before excavation, and carry the base to the perimeter to support the edge restraint.
I don’t dump the full base depth in one pass. Place aggregate in manageable lifts, with lift thickness based on the material and site conditions. Compact each lift with a plate compactor or other suitable equipment, then verify compaction before adding the next layer. Rainy-season paver installation needs that same patience when the ground is saturated.
Lay the field, then cut the curve
Keep the bedding layer even
Complete and check base compaction before screeding. Screed the specified bedding layer to a consistent thickness, commonly about 1 inch for a conventional concrete-paver system. Concrete sand is often used for this layer, which must remain even. Don’t use the bedding layer to make up for a low base.
Start the field pattern from a reliable straight reference, such as the garage or another planned alignment. Keep the joints consistent as you set the paving stones toward the curved border. I avoid a four-corner joint, where four corners meet at one point, because it disrupts the staggered pattern that helps neighboring pavers work together.
Make cuts that can stay in place
Once the field is laid, trace the final curve where the edge restraint will follow. Make perimeter cuts with appropriate masonry-cutting equipment, such as a wet saw. Wear eye, hearing, and dust protection, and follow the equipment instructions.
Check each cut piece before setting it. A smooth line matters, but pieces that taper into narrow points aren’t a good trade for a perfect-looking arc. A small adjustment to the border or pattern can give you stronger cuts and a cleaner finish.
Restrain the edge and stabilize the joints
Support the turning edges
A curved driveway needs restraint around exposed edges, especially where tires steer or brake. Purpose-made flexible edge restraint systems may suit some areas. A properly designed concrete edge or curb can offer stronger support where traffic and grade put more pressure on the perimeter.
Choose an edge restraint for the load and site, then anchor it according to the product instructions. I don’t use a walkway edging detail as a blanket driveway specification. A neat border won’t hold the field if the base beneath the turning edge is loose.
Finish with the specified joint material
Use a plate compactor only if the system allows it, with any required protective mat, and follow its instructions. After the paving stones are seated and checked, fill the joints with the sand specified for the system. Polymeric sand is one option I often consider for a conventional driveway. Follow its directions for joint depth, surface cleaning, watering, and curing. Bedding sand and joint sand have different jobs, so don’t treat them as interchangeable.
Polymeric sand can help hold sound joints, but it won’t stop a driveway from sinking over a weak base.
Check the finished driveway and keep an eye on it
Walk the edges and look for rocking paving stones, low spots, open joints, and areas where runoff collects. Review the drainage path and slope, then check again after a heavy rain. Florida weather gives you a practical test of the plan.
Clean leaves and stains before they build up, and watch for joint sand loss after storms or pressure washing. If pavers begin sinking, investigate the support below them, including whether the base had adequate compaction. Don’t just add sand on top. My advice on repairing sinking brick pavers explains why the support often needs correction.
Cost depends on the amount of excavation, soil repairs, drainage work, cuts, border choice, and paver product. For a site visit and an estimate based on your vehicles and property, Get a Free Quote.
Key Takeaways
Mark the driveway full size and check the turning path with the vehicles you use.
Set finished elevations and a runoff route before excavation starts.
Specify a compacted base for the soil and vehicle load, not just the appearance of the pavers.
Provide solid edge restraint along curved edges, and avoid narrow cut pieces where tires turn.
Frequently Asked Questions
How deep should I excavate for a curved paver driveway?
Add the planned compacted base, bedding layer, and paver thickness, then measure down from the required finished height. With 6 to 8 inches of compacted base, about 1 inch of sand, and 60 mm pavers, the total is roughly 9 1/2 to 11 1/2 inches before allowances for site conditions. Soft ground can require more excavation.
Do I need a special paver pattern for a curve?
You don’t need one required pattern, but the layout must handle vehicles and produce sensible cuts at the edges. I often favor herringbone in turning areas. Whatever pattern you choose, keep joints staggered and make sure the perimeter has proper restraint.
Will polymeric sand prevent puddles or settlement?
No. Puddles usually point to a grading issue, while settlement often starts with weak soil, poor compaction, or lost support below the pavers. Joint sand helps stabilize the finished surface. It can’t repair the layers underneath.
A Curve That Holds Up
A beautiful curve should feel easy to drive, drain properly after a hard rain, and enhance curb appeal. I plan those details first in the hardscaping, then choose pavers and a border that fit the home.
For your driveway, the strongest decision is the one made before installation: build the right support under the curve.
A driveway can have beautiful concrete pavers and still fail where they meet an asphalt driveway or existing concrete. In Southwest Florida, heavy rain, sandy or moving soil, and changing elevations can turn the buffer zone where vehicles cross materials into loose pavers, standing water, or a tire-catching edge.
A well-planned driveway transition isn’t finished with extra sand and hope. I plan the prepared base, finished elevations, drainage, and transition zone together, because every layer matters when vehicles turn into the garage.
Key Takeaways
A paver transition must drain away from the garage, home, and neighboring property. Florida soil movement can change grades and direct water toward the wrong place.
Most residential driveways begin with 6 to 8 inches of compacted aggregate. The base depth may reach 8 to 12 inches for weak soil, heavy vehicles, or turning stress. Extend support through a buffer zone and transition zone where needed.
Concrete and asphalt move differently than concrete pavers. A clean separation or movement joint is often better than forcing rigid connections. A paver overlay is appropriate only over sound concrete.
Driveway-rated concrete pavers, compacted base lifts, joint sand, and strong edge restraints work as one system. Porcelain pavers should be used for vehicles only with manufacturer approval.
A soldier course or contrasting border gives the transition a finished appearance. It also helps define and support the outer edge of concrete pavers.
Start With Drainage Before the First Paver
Florida rain finds every low spot. I have seen a driveway look level and clean at installation, then develop washed-out joints after one wet season because drainage issues were never addressed.
The pavers are only the surface. Water can move through joints between concrete pavers, along an asphalt edge, under a slab, or across a swale. Those joints should admit some water without allowing the supporting base to wash out. That is why the finished grade and base depth have to be planned before excavation begins.
Check the garage, street, and swale elevations
The garage threshold is one of the first elevations I check. A driveway transition cannot sit too high and block the door, or too low where rainwater runs back toward the garage floor.
At the street side, the driveway apron may connect near a curb, sidewalk, swale, culvert, or public right-of-way. The transition zone between these surfaces needs careful grading, with a buffer zone where runoff could undermine an edge. These areas can have local rules. Review paver driveway street connections before changing the front edge of your driveway.
The Florida Department of Transportation also treats drainage as more than a surface issue. Its Drainage Design Guide considers where runoff begins, where it travels, and where it safely exits.
Keep water from washing under the pavers
A proper slope should move runoff toward a suitable swale, planted area, or approved drainage route. It should not send water toward your foundation, pool cage, garage, or neighbor’s lot.
Downspouts and irrigation need attention too. A downspout dumping water along the paver edge can wash out sand and soften the base below. Fix the water source before replacing pavers, otherwise the same low spot usually comes back.
Water that disappears below pavers is not always good drainage. It can also be water carrying sand and soil out of the base.
Build Paver Driveway Transitions on a Strong Base
The visible seam between pavers and asphalt is not what carries a vehicle. The compacted material below concrete pavers carries vehicle loads and spreads pressure through the prepared soil.
A driveway is not a patio with cars parked on it. Tires create concentrated stress when they turn, brake, and sit in one place. Material selection matters because concrete pavers must handle these repeated stresses.
Use driveway-grade compaction, not loose fill
For a standard residential driveway, 6 to 8 inches of compacted aggregate is a common starting point. This base depth refers to compacted material, not loose stone dumped into an excavation.
Moving subsoil, clay pockets, wet ground, and erosion may require a greater base depth. Heavier vehicles can also push the required base depth toward 8 to 12 inches or require an engineered design.
The selected paver thickness is separate from the aggregate base and the roughly 1-inch bedding layer. For concrete pavers, paver thickness should match the expected traffic and vehicle weight.
I don’t place the full base depth at once. Aggregate should go in manageable lifts, with base compaction between layers. A deep base can still fail if the top gets tight while loose material stays buried below it. For more detail, see these Florida paver base depth requirements.
Taper the support through the transition zone
A pedestrian paver walkway may have 4 to 6 inches of compacted base. A driveway needs more support. When the areas meet, the transition zone should build support gradually instead of dropping sharply at one straight line.
I extend driveway-grade construction into the area where cars may cut across, turn, or occasionally park. This buffer zone becomes part of the driveway transition and should carry the same support expectations. The final base depth depends on traffic, soil, grade, paver size, and layout.

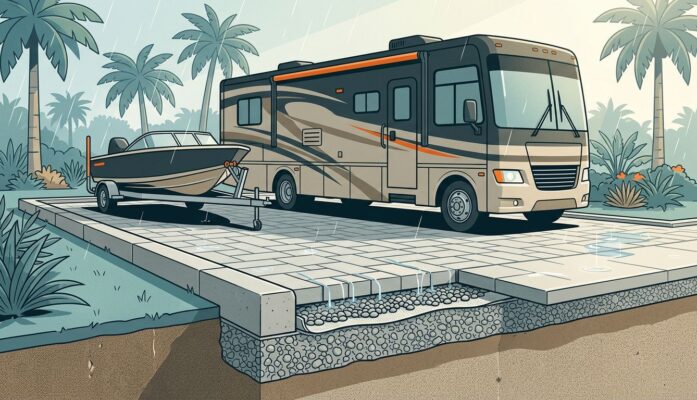

A second buffer zone may be needed where trailers, boats, or RVs cross the connection. Gradual support reduces differential settling and keeps the walkway from becoming the weak section beside a stronger driveway. There is no honest one-size-fits-all distance for every Florida home.
Connect Pavers to Existing Asphalt and Concrete Correctly
Asphalt is flexible. Concrete is rigid. Pavers are individual interlocking units over a bedding layer and compacted base. They respond differently to heat, moisture, and movement, so a driveway transition needs room to perform without creating pressure at the connection.
Pavers meeting an asphalt driveway
An existing asphalt driveway edge isn’t always strong enough to restrain a paver field. Asphalt can crack, crumble, or pull away where vehicles turn sharply.
I inspect the asphalt before tying into it. If the edge is weak, the repair may include cutting back damaged asphalt, checking the base depth, and rebuilding the supporting base. The transition zone should include a supported buffer zone near the edge. Proper edge restraints or a concrete header curb may also be appropriate for concrete pavers. A soldier course can provide an optional visual border at the material change. Pinellas County standard details, for example, show a 6-inch concrete edge restraint band for architectural pavers. That is a county detail, not a statewide rule, but it shows why a loose asphalt edge is not enough support.
Cold patch, asphalt repair products, or polymeric sand can help with minor finishing work. They don’t correct a failing base, spreading edge, or poor drainage.
Pavers meeting a concrete garage slab
At a garage apron, I want a smooth rolling surface for concrete pavers without forcing them hard against the existing concrete slab. Concrete and pavers can move at different rates, so the connection needs a transition zone and clear separation.
The finished height must account for paver thickness and avoid a lip at the garage. A clean movement joint between the concrete slab and concrete pavers gives the surfaces room to move. That joint also keeps debris from packing into the seam. If the concrete slab has settled badly, new pavers beside it cannot stop differential settling.
For a driveway extension or garage-side addition, or when an existing concrete connection is part of a paver overlay project, these paver driveway and concrete transitions are worth planning before material is ordered.
Match the Paver to the Traffic Area
Not every paver that looks good on a walkway belongs under a vehicle. Whether you choose concrete pavers, natural stone, or another material, product rating, paver thickness, shape, base design, and edge support must fit the area.
Choose pavers rated for driveway traffic
Concrete pavers are a practical choice for Florida driveways because damaged units can often be removed and replaced without tearing out the whole surface. For typical passenger vehicles, 60 mm concrete pavers, about 2 3/8 inches, are a common residential choice.
I often recommend 80 mm concrete pavers, about 3 1/8 inches, where work vans, trailers, RVs, boats, or frequent turning are part of daily use. The extra paver thickness helps, but it can’t replace adequate base depth, stable soil, or proper compaction.
Driveway pavers should come from products specifically rated for vehicle traffic. Porcelain pavers can work only when the manufacturer approves the product and system for vehicles. Many porcelain pavers are made for patios and walkways, not driveways. Unapproved porcelain pavers should not be used in a vehicle area, even when they look durable.
Keep the pattern stable at turning points
A herringbone pattern is popular for driveways because interlocking concrete pavers handle turning and braking better than long, uninterrupted running-bond lines. A simple field pattern can still work, but the layout should match how your vehicles enter and park. That herringbone pattern is especially useful where vehicles cut across the transition zone.
The front of the driveway takes the most abuse. Cars rarely roll in perfectly straight, especially across a buffer zone near the entry. Florida heat, heavy rain, and vehicle loads all make strong support important there. Concrete pavers still need quality edge support around the turning area.
Use Borders That Look Good and Hold the Layout
A soldier course is a row of concrete pavers placed in a different direction around the perimeter. It can frame the driveway, define a walkway, and create a transition zone between materials that looks planned instead of patched together.
Create a clean visual break
I like using a contrasting border treatment where a paver driveway meets asphalt, concrete, or a different pattern of concrete pavers. It gives the eye a clear stopping point, so a change in material feels intentional.
A charcoal border around warm-toned concrete pavers can look sharp against a light garage slab. A matching soldier course can also connect the driveway to a paver walkway, adding curb appeal without making the whole property look busy.
Remember that borders need support
The border treatment isn’t only decoration. It is part of the paver system, but it can’t replace a proper base or restraint. Without proper edge restraints, vehicle pressure can push outer pavers outward, open the joints, and allow sand to escape.
Plastic restraint may suit a curved pedestrian edge. Straight driveway runs often need a stronger metal or concrete restraint, selected for the system and site conditions. Any border product used with porcelain pavers should be approved for the intended traffic and installation system. Standard landscape edging is for mulch and grass. It isn’t made to hold a driveway together.
Consider a Thin Paver Overlay Only on Sound Concrete
Updating stained or dated concrete without full demolition can work, but this approach isn’t right for every slab. The concrete slab must be stable, properly sloped, and low enough to preserve clearance at garages, doors, sidewalks, and drainage areas.
Check the slab before covering it
Cracks don’t automatically disqualify a paver overlay. Active movement, differential settling, soft areas, heaving edges, and drainage issues require correction before covering the slab. An overlay can hide these problems temporarily, but it won’t repair them.
Thin pavers, including 30 mm products, should only be used in a manufacturer-approved paver overlay system over sound concrete. The approved system controls the setting method, adhesive or dry-set installation, drainage details, and edge treatment for concrete pavers. Porcelain pavers also require product-specific approval, and not every option is suitable for vehicle use. These thin pavers must meet the system’s load and installation requirements. For driveway applications, concrete pavers may be the more conventional choice, while porcelain pavers should only be considered when the manufacturer approves them for vehicle areas.
Plan the finished height first
A paver overlay adds height based on the selected paver thickness. That sounds obvious, but it creates problems throughout the transition zone, especially at garage doors, gate openings, screen enclosures, and sidewalk connections.
Measure every doorway and existing transition before choosing material. Leave enough of a buffer zone at doors, edges, and drainage paths for the finished surface to work properly. If the added thickness creates a trip edge or directs water into the garage, skip the paver overlay and rebuild the base after full removal.
Ask for the Details Before Work Starts
A quality proposal should explain what happens below the pavers, not only show a color sample. I want homeowners to know what they’re paying for and where shortcuts can happen.
Ask how much sub grade excavation is planned, how weak soil will be removed, and what base depth will remain afterward. Then ask what aggregate is specified and whether the final base depth suits the soil and traffic. Ask how base compaction will be handled in each lift, including the lift thickness and compaction process. You can use these questions to ask a paver contractor when comparing estimates.
Confirm the specified material, paver thickness, and traffic rating. If concrete pavers are planned, verify their vehicle rating, and ask whether porcelain pavers are approved for driveway use. If an existing slab is being covered with a paver overlay, ask which system is approved. If damaged areas require replacement, confirm that the new concrete pavers match the traffic rating.
For each transition zone near a curb, swale, sidewalk, garage apron, or material change, ask about drainage slope and finished elevations. Also ask how far the support extends beyond the visible seam into turning or cross-traffic areas, creating a proper buffer zone. Confirm the edge restraints, joint treatment, cleanup, and any local code or right-of-way requirements before work starts.
Frequently Asked Questions
What is the best transition between pavers and asphalt?
The best transition has a stable, compacted base under both surfaces, firm edge restraint, and a smooth finished elevation. Concrete pavers should meet asphalt where drainage won’t wash out the joint. Asphalt alone usually isn’t a reliable paver restraint.
How do pavers connect to a concrete garage floor?
Keep the pavers at a safe finished height and use a clean separation or movement joint between the paver field and concrete slab. Don’t pack the seam rigidly, because both surfaces need room for normal movement.
Can joint sand fix a gap near the driveway edge?
Polymeric sand helps fill paver joints when used correctly. It can’t repair a sinking base, broken restraint, washed-out soil, or crumbling asphalt edge. Find the cause before filling the gap.
How do I know if a paver overlay will work?
The existing concrete must be structurally sound, stable, and properly sloped. Concrete pavers or porcelain pavers also need manufacturer approval and a vehicle-rated installation. The added height must clear garage doors, gates, sidewalks, and drainage paths. A site inspection is the right first step.
A Transition Should Feel Built Into the Driveway
The strongest paver driveway transitions are planned as part of the whole surface, not added afterthoughts at an asphalt or concrete seam. The plan should include drainage, compacted base layers, concrete pavers and other vehicle-rated driveway pavers, solid restraints, correct heights, a soldier course, and a clean border treatment.
A planned paver overlay belongs only on sound concrete, while a stable system helps concrete pavers handle Florida rain, settlement, heat, and daily traffic. These details protect curb appeal and help each driveway transition connect pavers, concrete, and asphalt cleanly.
If your driveway has a cracked edge, a sinking transition, or plans for a new paver connection, Get a Free Quote for a free consultation and estimate.

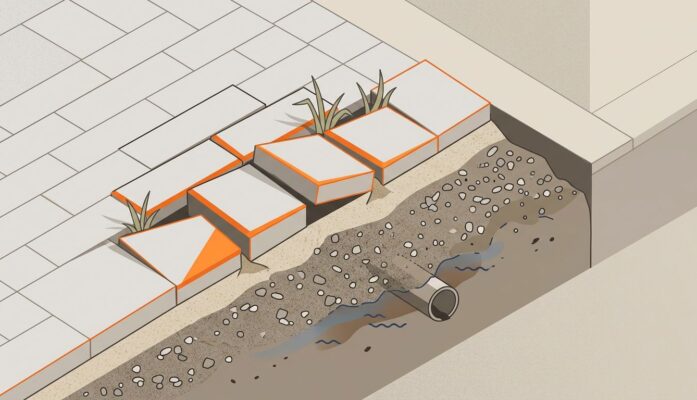

A paver patio or driveway can look perfect on day one and still suffer base failure after Florida’s wet season. In Southwest Florida, paver base depth Florida homeowners need depends on traffic loads, soil stability, drainage, and how the space is used.
I don’t like placing beautiful new pavers over loose sand, old fill, or a base that hasn’t been compacted properly. A quality paver job starts with excavation, drainage, and base preparation for a firm aggregate foundation.
Recommended Paver Base Depth Florida Homeowners Need
There is no single depth for every patio, walkway, pool deck, or driveway. The base must match the load and the ground underneath it.
These are practical starting ranges, not universal requirements. Local code, engineering guidance, drainage, soil type, poor fill, clay, wet conditions, and site-specific loading can change them.
The table lists the compacted aggregate base only. It excludes the roughly 1-inch concrete sand setting bed and the thickness of the concrete pavers.
Project area
Compacted aggregate base
Bedding sand
Patio or pedestrian walkway
4 to 6 inches
About 1 inch
Residential driveway
6 to 8 inches
About 1 inch
Heavy vehicles or weak ground
8 to 12 inches or engineered design
About 1 inch
Patios and walkways need 4 to 6 inches
For most Florida patios, sidewalks, and walkways, I start with 4 to 6 inches of compacted crushed limestone, road base, or another approved aggregate. This range works well for typical patio pavers and pedestrian areas.
That measurement means compacted depth, not loose gravel dumped into a hole. Soft fill, roots, clay pockets, and wet areas may need more preparation. Insufficient depth can lead to settlement and base failure.
The CMHA application guide lists this range for pedestrian areas. This installation guide supports using site conditions to adjust the starting specification.
Driveways need a stronger foundation
Driveway pavers need a stronger foundation because vehicles create higher traffic loads than pedestrian areas. A typical residential driveway should begin with 6 to 8 inches of compacted base material.
The Concrete Masonry & Hardscapes Association lists a 6-inch minimum for well-drained residential driveway soil in its paver construction guidance.
For work vans, trailers, RVs, repeated turning, or weak ground, 8 to 12 inches may be better. A thicker paver won’t fix a weak base. The complete system has to carry the weight.
Calculate Excavation Before Ordering Materials
The excavation depth must include three distinct layers, not only aggregate: paver thickness, the approximately 1-inch bedding sand layer, and 4 to 6 inches of compacted aggregate base. The setting layer may be specified as a concrete sand setting bed, while compacted crushed limestone is one common aggregate example.
For a driveway with 60 mm concrete pavers, a 1-inch setting layer, and 6 to 8 inches of compacted aggregate, total excavation commonly reaches 10 to 12 inches. Final grade matters around doors, screen enclosures, pool areas, and garage slabs. Poor subgrade, wet areas, clay pockets, or inadequate drainage can require additional excavation or stabilization.
Build the slope into the subgrade
I establish finished elevations before excavation begins. Subgrade compaction should be complete before aggregate placement, with the grade directing water where it needs to go.
A 2 percent slope for drainage, approximately 1/4 inch per foot, is a dependable target. Local drainage design and site requirements may call for adjustments. Flat-looking pavers can still drain correctly when the grade is planned from the beginning.
Compact in controlled lifts
Base material should go in manageable lifts, often 2 to 3 inches at a time. Each layer gets compacted with a plate compactor before the next layer is added.
Every lift should reach consistent compaction density, rather than merely feeling hard at the surface. Dumping 8 inches of aggregate at once may leave loose stone underneath. That is where settling starts after traffic and summer rain.
Florida Sandy Soil Needs More Than Gravel
Florida sand can support interlocking pavers well when properly prepared. Loose sand, disturbed sandy subgrade, clay lenses or pockets, wet areas, and a poor subgrade can all threaten support. Base preparation should remove organic material and buried debris before aggregate is installed, while subgrade compaction helps create stable support. During the wet season, excess moisture can soften soil, cause migration, or reduce support under the finished surface.
Geotextile fabric has a specific job
Geotextile fabric may help separate sandy soil from the aggregate base where the subgrade is weak, mixed, or likely to migrate. It belongs over the prepared subgrade, below the aggregate base, not directly below the setting layer.
Its purpose is separation and soil stability, but it isn’t a substitute for excavation, drainage, or compaction. Fabric is helpful, but it isn’t magic. It cannot correct poor drainage, shallow excavation, or skipped subgrade compaction. Used alone, it can’t prevent every base failure.
Use the right sand for the setting bed
Bedding sand is a leveling layer, not a structural layer, and the usual bedding sand depth is about 1 inch. For a concrete sand setting bed, I use clean concrete sand that meets the paver system requirements, then screed it to a consistent thickness.
The CMHA technical specification calls for bedding sand that conforms to ASTM C33 or CSA A23.1. Mason sand, stone dust, and limestone screenings are not good substitutes when they hold water or shift under the pavers.
Sand can make a base look level, but it cannot make a low or unstable base strong.
Drainage Stops Most Paver Base Failures
Florida’s wet season finds every weak spot, so drainage design matters as much as the aggregate beneath pavers. A planned slope for drainage directs surface runoff away from the home, pool deck, and driveway edges. Otherwise, water can soften soil, cause erosion, saturate the ground, and wash away aggregate support, leading to base failure.
Never use plastic sheeting beneath a normal paver installation to stop weeds. It can trap water below the surface. Proper grade, compacted aggregate, edge restraints, and filled joints create a complete system. However, polymeric sand and these restraints can’t repair a failed or washed-out base.
If you see low spots, rocking pavers, open joints, or water collecting after storms, don’t only add more sand on top. The affected pavers may need to be lifted so the base and drainage can be corrected.
Key Takeaways
Use 4 to 6 inches of compacted aggregate for most patios and pedestrian walkways.
Plan on 6 to 8 inches of compacted base for a residential paver driveway.
Add paver thickness and a roughly 1-inch leveling layer when calculating excavation.
Compact the subgrade and aggregate base in layers, not all at once.
Keep water moving away from the house with a planned slope near 2 percent.
Use geotextile fabric when sandy or disturbed soil needs separation from the base.
Frequently Asked Questions
How deep should a paver patio base be in Florida?
Most patio pavers need 4 to 6 inches of compacted aggregate foundation, plus the approximately 1-inch leveling layer. Local code, drainage, clay, wet areas, and poor fill may require a deeper design.
How deep should a paver driveway base be?
For a standard passenger-vehicle driveway, 6 to 8 inches of compacted crushed aggregate is a practical starting point. Heavy vehicles, turning stress, poor soil, and local conditions may call for 8 to 12 inches.
Can polymeric sand stop pavers from sinking?
No. Polymeric sand helps stabilize joints, but it can’t correct a failed, washed-out, or poorly compacted base. It works best after the pavers are level, restrained, and properly installed.
A Strong Paver Surface Starts Below Ground
The right paver base depth in Florida depends on prepared soil and the correct aggregate depth. Thorough compaction, drainage, and secure edge support also matter. Together, these elements help prevent base failure, while local codes and site conditions may require different specifications.
If you are planning a patio, driveway, pool deck, or walkway in Southwest Florida, Get a Free Quote for a site review and clear estimate. A solid foundation helps keep your pavers level, durable, and attractive through Florida’s wet season.
Meta Title: Florida Paver Installation Timeline: Prep to Cleanup
Meta Description: See how a Florida paver project moves from planning and base work to joint sand, cleanup, and long-term care.
A quality paver project in Florida depends on soil conditions, drainage, compaction, and strong edge support. Paver color and pattern matter, but they don’t keep the surface level through heavy rain.
I have seen patios and driveways look great at first, then settle after one hard rainy season because the base was rushed. This timeline covers planning, permitting, excavation, base preparation, drainage checks, paver placement, inspections, and cleanup. Here’s what homeowners should check before approving the work.
Key Takeaways
Sandy Southwest Florida soil can support concrete pavers, but loose, disturbed, or washed-out ground needs more attention before the base goes in.
The pavers are the visible layer. Excavation, compacted aggregate, leveling material, edge restraints, and joint sand hold the whole system together.
Drainage should be planned before demolition. Water needs a controlled path away from the home, garage, pool enclosure, and neighboring property.
A project may pause after rain. Wet soil that ruts, pumps water, or won’t compact shouldn’t be covered with pavers.
Cleanup isn’t the last detail. The final inspection should include slopes, joints, borders, cuts, drainage flow, and any areas that feel soft underfoot.
A low paver is rarely only a low paver. Water movement, weak compaction, or failing edges below the surface are often the real issue.
Site Planning Starts the Florida Paver Project
The first visit should focus on the property, not a paver sample board. The site plan should support outdoor living and identify whether the project involves paver patios, a pool deck, driveway pavers, or paver walkways. Access, use, and finished elevations must be resolved before paver installation begins.
Layout, access, and material choices
A driveway needs pavers rated for vehicle traffic. A pool area needs a finish that feels good under bare feet and offers dependable traction when wet. Natural stone can provide a different appearance when it suits the design.
Patio furniture, grill locations, gates, screen doors, landscape lighting, irrigation heads, and equipment access all affect the layout. These details also shape the broader hardscape installation and help define any custom paver services needed.
I also recommend homeowners check HOA requirements before materials are ordered. Driveway colors, borders, and layouts visible from the street can affect curb appeal and may need approval. Confirm material availability early, especially for selected colors, borders, coping transitions, and specialty patterns.
Permit rules can change from one municipality to another. A driveway expansion may have different requirements than replacing an existing surface. I tell homeowners in Fort Myers, Cape Coral, Bonita Springs, Punta Gorda, Sarasota, and nearby areas to confirm local requirements before demolition.
Call Sunshine 811 before deeper excavation or work near utilities. Also, don’t drill into screen enclosure footings or move pool-cage anchors without qualified guidance.
The finished paver height matters. New pavers should meet doors, garage slabs, walkways, drainage areas, and pool coping without creating a trip point or pushing water toward the home. Grade changes may also require coordination around retaining walls.
Excavation Reveals What Is Under the Surface
Excavation is where the true condition of the yard becomes clear. Clean sand, shell, construction fill, organic soil, clay pockets, utility trench backfill, and old concrete edges can all appear on one property. Areas near grade changes, retaining walls, pool structures, or property transitions may require extra care.
Removing weak soil and old materials
The crew marks the planned perimeter and finished elevation, then removes the old surface and unsuitable soil. The excavation depth depends on paver thickness, planned base depth, traffic rating, drainage, and soil stability. Heavier traffic and driveway pavers typically require a stronger, deeper section.
A patio or walkway may begin with about 4 to 6 inches of compacted aggregate and a thin bedding layer. A residential driveway often needs a deeper section. Our brick paver driveway installation guide discusses a common approach of about 12 inches of excavation, 6 to 8 inches of compacted gravel, and 1 to 2 inches of sand.
Those are planning ranges, not one-size-fits-all measurements. Custom paver services must account for mixed fill, old concrete, utility backfill, and organic or soft soil. Project size, vehicle loading, drainage, disturbed soil, and actual site conditions control the final excavation and base design.
Managing sandy soil and soft spots
Sandy soil drains quickly, but it does not always hold its shape. Heavy rain can move fine material, soften the ground, and wash support away from the aggregate base.
The quality of soil compaction determines whether the subgrade holds firm without pumping, rutting, or losing its shape. Where soil is loose, mixed, disturbed, or likely to blend into the stone, geotextile fabric may be used for separation and filtration. It is not required under every paver project, and it cannot fix a bad drainage plan.
The Crushed-Stone Base Does the Heavy Work
The aggregate base supports the leveling layer and pavers. This base preparation takes time because it must be placed, shaped, checked, and compacted in controlled lifts.
Building the base in compacted lifts
Crushed stone or base gravel should go down in manageable lifts, often around 3 inches at a time. Each lift must be compacted with a plate compactor before the next one is added. Dumping the full base depth at once and compacting only the top can leave weak material below.
For a well-drained residential driveway, the Concrete Masonry and Hardscapes Association lists at least 6 inches of compacted base as a starting point. The interlocking concrete pavement guide also notes that concrete pavers provide rapid drainage and good slip resistance, which is useful around pool areas.
The base needs a firm, even feel before the next layer begins. Deep footprints, tire ruts, smearing material, or water pumping to the surface are warnings that the area is too wet or unstable.
Setting drainage before the leveling layer
Florida rain tests every slope. Good drainage solutions account for finished slopes, downspouts, garage thresholds, and pool enclosures. They should also protect foundations and neighboring properties from concentrated runoff.
At grade transitions, check retaining walls and areas where runoff could collect behind or beside a wall. Large driveways, turning areas, pool surrounds, or difficult grades may need custom paver services with a site-specific base and drainage design.
The 2020 Florida Building Code, Building, 7th Edition, allows a minimum 1 percent grade for paver-type decks. Review the Florida Building Code slope guidance and confirm the rules that apply to your exact property.
A laser level helps the crew check elevations throughout base work. I don’t wait until pavers are laid to find out water is heading in the wrong direction.
Weather, project size, soil moisture, material availability, and inspection findings can extend this phase. Work should pause until unstable or overly wet areas are corrected.
Bedding Sand Makes the Final Surface Even
Bedding sand is a leveling layer. It is not there to make up for a low base, cover deep dips, or correct unstable soil. If the base is wrong, the sand will not make it strong. Ordinary masonry sand should not replace the specified bedding material when the paver system calls for a different product.
Screeding a consistent sand layer
After the base is compacted and graded, a thin, consistent layer is placed over it. Many projects use about 1 inch, although the correct depth depends on the selected system and site conditions.
Screed rails and a screed board bring the sand to an even plane. Once this layer is prepared, avoid walking across it or dragging materials through it. Footprints and tire marks can create uneven pavers later.
Checking the surface before pavers arrive
Custom paver services often include unique layouts, curves, borders, and transitions. Before disturbing the surface, the installer should check grade, width, edge locations, and the first pattern row. A clean layout can prevent unnecessary cuts.
If Florida rain hits after the surface is screeded, the crew should inspect it and confirm elevations before pavers arrive. Standing water, washouts, or disturbed sand may mean that section has to be reworked before pavers are installed.
Laying Concrete Pavers and Securing the Perimeter
Once the base and bedding layer are approved, paver installation moves faster. Still, the visible pattern deserves careful work. Small layout errors can become wide cuts or uneven borders at the far end.
Setting the field and making clean cuts
Pavers are placed from a stable starting edge, following the selected pattern and keeping joint spacing consistent. A herringbone pattern is often used in driveways because it handles vehicle movement well. Patios and pool decks may use more decorative layouts.
Custom paver services must account for curves, drains, steps, columns, coping, screen enclosures, and border widths. Cuts should be clean and properly fitted, with no narrow slivers along the edge.
Larger driveways or restricted-access pool areas may require staged material delivery and additional layout checks.
Edge restraints keep pavers from spreading
Secure edge restraints, anchored edging, curbs, or other approved support hold the outside units in place. Without a stable perimeter, pavers can creep outward, joints can open, and borders can separate.
This is one area I never treat as optional. Heavy turning traffic, slope, runoff, and tree roots can all put pressure on the outside edge.
Joint Sand, Compaction, and Cleanup Finish the Job
The final phase locks the surface together and leaves the property clean. It also shows whether the crew protected nearby landscaping, pool equipment, walls, and existing concrete.
Filling the joints the right way
Polymeric sand is swept into dry, clean joints after the pavers are set and compacted. It is then activated with water according to the product directions. The material hardens in the joints and helps limit weed growth, ant activity, debris, and washout. Masonry sand isn’t a substitute for the specified joint material in this application.
Don’t rush this step between storms. Polymeric sand needs dry pavers and dry joints before it is installed and activated. If pavers are rocking, the base needs repair first. Joint sand cannot correct movement below the surface.
Final compaction and site cleanup
A plate compactor, usually with a protective pad, seats the pavers into the bedding layer and helps settle the joint material. The crew should make the correct final pass with the plate compactor before checking for movement, open joints, chipped units, and uneven edges.
Cleanup should include removing extra sand, leftover stone, cut pieces, debris, and protective coverings. Nearby landscaping, pool equipment, walls, and existing concrete should remain protected throughout the process. Downspouts, drains, gates, doors, and irrigation should be checked before the project is signed off.
Weather Can Change the Installation Schedule
Florida’s subtropical climate brings intense sun, heavy rain, saturated soil, and fast-moving storms. The best schedule depends on weather and site conditions, not simply the month on the calendar.
Drying time matters after a storm
Light rain may slow material handling without stopping every task. Heavy rain is different. It can fill excavations, soften the subgrade, move bedding sand, and wash aggregate out of place.
I’d rather pause for a day than cover wet, unstable material with beautiful pavers. After a storm, the crew should inspect each layer before paver installation continues. Materials must be firm and dry enough to inspect and compact properly.
What homeowners should expect on timing
A straightforward patio may move through excavation, base preparation, paver setting, and cleanup without major delays. Project size, difficult access, demolition, drainage repairs, screened pool areas, and material availability can extend the schedule.
For larger or more complex work, custom paver services should include clear weather contingencies. Reworking washed-out sections can also add time before the crew resumes installation.
Ask your contractor what happens if a storm arrives after excavation. A clear answer should include site protection, drying time, subgrade and base inspection, drainage verification, and rework before pavers are installed.
Questions Homeowners Ask Before Work Starts
Can pavers be installed during Florida’s rainy season?
Yes, when the site is firm, drained, and dry enough for proper compaction. Work should pause if there is standing water, deep rutting, soft soil, or disturbed bedding sand.
How do I know the base is failing?
Watch for rocking pavers, low areas that hold water after storms, separating borders, open joints, or tire marks that sink. Adding loose sand under one paver is usually a temporary patch. The affected area may need to be lifted, rebuilt, compacted, and reset.
How often should pavers be sealed and maintained?
Sweep debris, manage stains early, and inspect the joints after major storms. Sealing schedules vary by traffic, sun, moisture, paver condition, and the sealer product. Driveways may need attention more often than a covered patio. These paver sealing and maintenance tips can help you spot wear before it becomes a larger repair.
A Strong Base Makes the Difference
A beautiful driveway, patio, walkway, or pool deck starts below ground. Proper excavation, compacted aggregate, controlled drainage, secure edges, and full joints give Florida pavers the support they need through rain, heat, and daily use. Durable construction also improves appearance and may support curb appeal and property value.
If you are planning paver walkways, driveways, patios, or pool areas, Get a Free Quote for a site review and clear estimate. Whether you need custom paver services or repairs for sinking pavers, I will review the base, drainage, access, material selection, project size, and desired finish before work begins.
A paver driveway or patio can look perfect when it is new, then begin spreading at the edges after heavy rain and regular use. Paver edge restraints are what keep the outside row from moving and provide the lateral support that interlocking concrete pavements rely on. Natural stone pavers can require different thickness, base, and restraint details.
After more than 20 years working with Florida pavers, I have seen small gaps turn into uneven borders, loose joint sand, and sinking areas. Florida heat, intense rain, saturated or shifting sandy soil, and runoff can expose weak perimeter support faster than northern freeze-related conditions. A strong base, proper drainage, and a solid edge must work together, because the edge alone won’t fix settlement.
How paver edge restraints keep a Florida surface locked
Interlocking concrete pavements push outward under vehicle traffic when vehicles turn or brake. Shifting furniture and foot traffic add pressure near the perimeter, so the pavers need a firm frame to keep their shape.
The CMHA edge-restraint guidance explains that exposed edges need restraint to hold the pavers tightly together. That applies to a small walkway, but it matters even more at a driveway apron or busy patio.
A border is part of the support system
A decorative border can look great, but it also helps support the surface. The outside pavers carry pressure from the field behind them. When the restraint is weak, joint sand escapes, joints open, and the paver field starts moving toward the edge.
I pay close attention to driveway aprons, sides of garages, pool deck edges, steps, and transitions beside concrete. These are the areas where problems often show first.
Florida rain can expose a weak perimeter fast
Southwest Florida doesn’t deal with regular frost heave or repeated freeze thaw cycles like northern states. Our bigger concerns are hard rain, runoff, saturated soil, shifting sand, roots, and poor grading.
Water that reaches an unprepared edge can wash away the base below the pavers. The surface may still look level for a while, but the base can be failing underneath. That differs from ordinary surface weathering, which can discolor or roughen the surface without washing out the base.
A clean-looking paver edge may still have failed support below it. The restraint needs firm support below it, not loose soil or bedding sand.
Choosing paver edge restraints for the job
There is no single best restraint for every Florida project. Curves, paver thickness, expected loads, coastal exposure, drainage, soil, and the planned base material all affect the choice.
Straight runs, clean borders, and low-profile edges
Paver thickness and anchor spacing
Steel edging
Heavy-duty designs and straight edges
Product coating and local exposure
Concrete edge restraint
Designs that call for a permanent formed edge
Properly supported base and careful drainage planning
The best material is the one that fits the complete pavement design without creating a raised trip point or leaving outside pavers unsupported.
Interlocking concrete pavements and natural stone pavers can require different edge details because their thickness and bedding may vary. A concrete option needs a properly supported base and careful drainage planning.
Flexible plastic edging works well around curves
Purpose-designed plastic edge restraints, unlike thin landscape borders, are common around freeform patios, circular sitting areas, and curved walkways. They follow curved runs and help avoid a patchwork of short, rigid pieces. When the curve is a whole driveway rather than a walkway, my curved paver driveway planning guide covers the layout, cuts, and edge support those runs need.
Plastic does not mean light-duty by default. The quality of the restraint, the base below it, and the anchoring method decide how well it performs. A thin landscape border pushed into soil is not the same thing as a paver restraint.
Metal paver edging gives straight lines a clean finish
Aluminum edge restraints suit straight runs where you want low profile edging along a driveway or patio. Aluminum does not rust like bare steel, which can be useful in Florida’s humid and coastal conditions.
Still, metal paver edging isn’t automatically stronger because it’s metal. It must sit against the paver edge, be anchored into a stable base, and match the paver system. I also check cuts, connectors, and transitions near concrete slabs before the first paver goes down.
Dense-graded and open-grade bases need different details
The edge restraint has to match what lies below it. Conventional interlocking concrete pavements and permeable driveways may look similar from above, but their base material and drainage paths work differently. Natural stone pavers may have different structural and drainage specifications, so don’t assume they use either assembly.
Conventional paver installations need a compacted base berm
For most standard driveways and patios, the dense graded base extends beyond the outside pavers. That extra berm provides compacted base material for anchoring the restraint.
The PAV-TEC-018-22 installation bulletin shows restraints spiked into dense-graded base berms, while bedding sand sets pavers to final grade. As an anchoring substrate, bedding sand can’t correct a soft, washed-out, or uneven base.
Aggregate should be placed in controlled lifts and compacted as work progresses. Dumping all the stone at once and compacting only at the end leaves too much room for settlement.
Permeable pavers need open-grade edge planning
Permeable paver systems use clean, open-graded stone to form an open grade base, allowing water to move through joints and into the layers below. Fine sand can clog that system, so materials and installation order must follow the approved design.
Some permeable edge systems call for excavation beyond the paver field, soil-separation fabric, open stone layers, and a setting bed of ASTM No. 8 or No. 9 aggregate. The fabric may wrap or fold along the perimeter before the edge is completed.
I inspect the full drainage path before recommending permeable pavers. Sandy or shifting subgrade, seasonal saturation, high water tables, roof runoff, swales, and adjacent grades all matter. A permeable surface isn’t a fix when water lacks a viable discharge or infiltration path.
Installing paver edge restraints the right way
Good paver work starts below ground. For interlocking concrete pavements, edge support depends on excavation, correction of weak or wet soil, lift-by-lift compaction, finished elevations, and drainage. The restraint comes later, after those details are correct.
The edge restraint system must match the selected product, paver thickness, base, and anchor method. Natural stone pavers may require different thicknesses and a separate, approved installation system.
Set finished height before placing the restraint
I check where water needs to flow before establishing the finished paver height. That includes the garage, street, pool deck, screen enclosure, downspouts, and low areas around the property.
CMHA guidance recommends at least 1 inch of vertical restraint against the side of the paver; this isn’t a universal code requirement. Set the restraint to the correct elevation according to current product instructions and project design. Too high creates a trip edge; too low leaves pavers unsupported.
Anchor into base material, never loose bedding sand
A standard paver installation follows a practical order:
Excavate to the required depth and correct weak or wet soil before placing the base stone.
Place and compact the aggregate base in lifts, extending it beyond the paver perimeter.
Install the restraint against the planned paver edge and anchor it into compacted base material.
Screed the bedding sand, set the pavers, compact the surface, then fill joints with the specified material.
Many restraint products use landscape spikes that must penetrate firm, compacted support. Spike spacing varies by product and loading, and curved runs may require different anchoring details than straight driveway edges.
A loose border is usually a symptom, not the whole problem. Replacing one paver or adding more bedding sand may improve the appearance briefly, but it won’t restore the surface’s structural integrity. A failed base needs inspection, not another surface patch.
Open joints and moving pavers need inspection
Watch for pavers that rock under your foot, widened joints near the border, missing joint sand, or a border pulling away from the main field. On a driveway, inspect areas exposed to vehicle traffic, especially where cars enter at an angle or turn near the street.
The repair may require lifting affected pavers and inspecting the base material and aggregate layers. Drainage, soil, or grading problems may also need correction before compacting the area and resetting the restraint. For natural stone pavers, approved bedding and restraint details may differ, so the same reset method may not apply. I’d rather repair the cause once than keep patching the same edge.
Low spots after rain are not a sealing problem
Sealer can help protect the surface from stains and weathering. It can’t repair settlement or restore support below the pavers.
Heavy pressure washing can also remove joint material if it is done too aggressively. Regular care matters, but it shouldn’t hide a structural issue. Our paver sealing and maintenance tips can help you spot routine issues before they grow.
Key Takeaways for Florida Homeowners
Paver edge restraints hold the outside pavers in place and protect the interlocking pattern.
The restraint must anchor into a properly compacted aggregate base, not loose soil or bedding sand.
Plastic edging can suit curves, while aluminum and other metal systems often work well along straight borders.
Heavy rain, runoff, sandy subgrade, and poor grading are bigger Florida concerns than freeze-thaw cycles.
Permeable paver systems need open-graded stone, compatible joint-fill material, and edge details that protect drainage.
If your driveway edge is spreading, your patio has low spots, or pavers are separating near the border, inspect below the surface. A qualified local professional can evaluate the base, drainage, and edge installation.
Common Questions About Paver Edging
Can standard landscape edging replace a paver restraint?
No. Standard landscape edging separates mulch, grass, or planting beds. It isn’t designed to hold interlocking concrete pavements against vehicle traffic, foot traffic, and the outward pressure of a full paver field.
Use a restraint made for the paver system and install it over a prepared base. An existing concrete curb or properly supported border may also serve as part of the design, but only if it is stable and the adjacent base isn’t failing.
How many spikes does paver edging need?
The answer depends on the product and the project. Some systems use spikes around 8 to 12 inches apart, but homeowners shouldn’t treat that as a rule for every installation.
Curved runs, driveways with turning traffic, and long straight walkways can require different anchoring details. Follow the manufacturer’s instructions, account for site conditions, and make sure every spike reaches firm, compacted base material.
What happens when a patio has no edge restraint?
The outside pavers can shift outward over time. Joints begin opening, joint sand can wash away, and nearby pavers may loosen or settle.
A patio may not carry car traffic, but furniture, foot traffic, rain, and soil movement still put pressure on the perimeter. The missing restraint often becomes visible first at corners, steps, and curved borders.
Strong Paver Edges Start Below the Surface
The right paver edge restraint isn’t the most visible part of a driveway or patio. It helps hold the complete installation together. A stable aggregate base, proper drainage, filled joints, and secure edges help protect the surface through Florida rain and daily use.
A beautiful pattern needs more than attractive pavers; it needs support below the surface and around every exposed edge.
A paver driveway or patio can look perfect on day one, then start sinking after hard rains. In Florida, sandy soil may shift after excavation, while clay pockets or imported fill can drain differently. Intense rainfall can also increase runoff and erosion, so the site deserves inspection before installation.
I use geotextile fabric under pavers when a property needs separation or stabilization below the supporting layers. This paver underlayment fabric is site-specific, not a universal requirement. On the right project, it can help a paver patio, walkway, pool deck, or driveway stay level for years.
The decision depends on the soil, drainage, rainfall exposure, traffic, prior settlement, and proposed paver use. It may be useful on one Southwest Florida property and unnecessary on another.
Key Takeaways
Geotextile fabric under pavers is site-specific, not a universal requirement. It is most useful where Florida soil is loose, disturbed, soft, variable, or prone to mixing with the aggregate base.
Non-woven fabric commonly supports separation and filtration, while woven fabric may be appropriate for some soft or weak areas. Geogrid serves a different reinforcement function and may be used alongside separation fabric on heavier projects.
Fabric cannot replace proper excavation, drainage, base depth, compaction, sand, edge restraint, or joint maintenance. For many patios and walkways, 4 to 6 inches of compacted base is a common starting point; driveways often begin around 6 to 8 inches.
Proper installation places the fabric directly over the prepared subgrade, below the aggregate base, with suitable overlaps and full coverage. Persistent ponding, erosion, settlement, or drainage problems must be corrected rather than covered with fabric.
Florida Soil Conditions That Call for Fabric
Florida has plenty of sandy soil, and sand can drain well. That useful permeability doesn’t mean every area is stable. Compacted fill, localized clay lenses, organic soil, and trench backfill can settle differently or drain poorly.
The University of Florida explains that much of the state’s surface soil is sandy, but construction can leave behind disturbed areas, trenches, fill, and drainage concerns. A Florida residential soil assessment is a good reminder that the soil below your landscape may not be the same across the whole yard.
Loose fill and disturbed ground
I strongly consider fabric when I see loose fill, soft spots, organic soil, or an area that has already settled. This is common around newer construction, pool enclosures, lanais, downspouts, and areas filled during pool construction.
The fabric separates native soil from the crushed aggregate base. Without that separation, aggregate can press into weak soil and contaminate the base material with subsoil. Soil can also work its way up into the stone. Once those materials blend together, the base loses its strength.
Water problems after heavy rain
Southwest Florida rain can hit hard and fast. If water puddles next to the house, runs toward a pool deck, or gathers at the end of a driveway, I don’t treat it like a small detail.
Geotextile fabric can help maintain layer separation where water moves through the base, but it won’t stop erosion from a larger problem. It can’t correct a flat grade, undersized drainage, concentrated downspout discharge, or persistent ponding. I check the property’s drainage system, roof discharge, swales, pool runoff, and low points after rain.
A paver surface can look level while the base underneath is slowly washing out. The first sign may be one low paver, but the problem can extend much farther.
How Geotextile Fabric Under Pavers Supports the Base
This layer sits at the bottom of the paver system, over prepared soil and below the aggregate base. It isn’t a substitute for base gravel, the sand beneath pavers, edge restraint, or compaction.
It is one layer in a full system that also depends on proper grading and drainage. Every layer has a job.
Separation keeps the base clean
The primary role of non woven geotextile fabric in this application is separation. It keeps the base material above the soil and helps prevent the layers from mixing as weight and weather affect the surface.
Think of the aggregate base as the foundation below the pavers. In plain language, it is often called base gravel, though materials can vary by project. If aggregate mixes with weak soil and fines, it may not compact or drain as intended. That can lead to ruts, rocking pavers, open joints, and low areas.
The CMHA guide to geosynthetics for segmental pavement describes these materials’ different roles, including separation, filtration, drainage, and reinforcement. No single product performs every function equally, so the right choice depends on site conditions.
Fabric is not a complete weed barrier
Many homeowners ask if fabric stops weeds. The honest answer is no, not completely.
Weeds often start from seeds that land in the joints with dust, mulch, leaves, grass clippings, and organic debris. Those seeds don’t need to grow up from the native soil. Underlayment may reduce some growth from below, but it isn’t a replacement for routine joint cleaning and properly installed joint material.
Polymeric sand can help lock pavers together and support stable joints, but it only works as intended when the pavers and foundation are properly prepared. Clean surfaces, full joints, and routine maintenance matter more than treating underlayment as weed control.
Choosing Non-Woven or Woven Fabric
Not all paver underlayment fabric is the same. A lightweight landscape fabric sold for garden beds isn’t automatically suitable beneath a driveway or patio.
The fabric must handle construction traffic, stone placement, soil contact, and moisture, but a heavy duty label alone isn’t a performance specification. It needs suitable permeability for Florida rainfall while limiting soil migration and matching the property’s conditions.
Non-woven fabric for separation and drainage
Non woven geotextile fabric is often the best fit for residential hardscape work when separation and filtration are the goal. It’s commonly made from polypropylene fibers, but polypropylene fabric construction and product specifications matter more than the material name alone.
I use non woven geotextile fabric when Florida soil is sandy, variable, or prone to movement, with separation as the main concern. Florida’s sandy native soil, compacted fill, clay pockets, pool-construction disturbance, and driveway traffic can create different needs on one property. It works like a filter fabric, allowing water to pass while holding soil and stone in proper layers.
Woven fabric generally offers greater tensile strength. It may support soil stabilization in soft, disturbed, or moving areas, but fabric alone won’t stabilize every site. Selection still depends on site loads, drainage, and installation.
For a regular patio on firm, well-drained native sand, woven fabric may be more than the project needs. For a driveway over questionable fill or a section that has repeatedly sunk, woven geotextile fabric may be worth considering.
Geogrid is different again. It can reinforce aggregate through interlocking, supporting aggregate stabilization, while separation fabric keeps soil and stone apart. It isn’t automatically a replacement for that separation layer, and some heavier projects need both. A qualified site review is smart when the site has severe settlement, a retaining wall, heavy delivery trucks, or major drainage issues.
Base Depth Matters More Than Fabric Alone
The geotextile fabric supports the base system, but it can’t make a thin base carry a heavy load. Fabric labeled heavy duty still can’t replace proper design, adequate depth, or compaction.
I always look at how the space will be used before deciding how deep the excavation should go.
Patios and walkways need a compacted foundation
For many Florida patios and walkways, a common starting point is 4 to 6 inches of compacted aggregate base, commonly called base gravel.
About 1 inch of bedding sand follows as a leveling layer, not the structural base, before the pavers are placed.
Actual depth depends on traffic, soil strength, clay or fill layers, and drainage. Grade, erosion exposure, local requirements, and the condition of the prepared ground matter too.
In Southwest Florida, freeze thaw cycles are generally less central than heavy rainfall, saturated soil, erosion, and soil disturbance.
I don’t want to place beautiful new pavers over a base that will settle during the first wet season. The fabric, aggregate base, leveling sand, pavers, and edge restraint each serve separate roles.
Aggregate should go down in manageable lifts and be compacted with a plate compactor. Lift thickness and compaction depend on the aggregate, moisture, equipment, and site conditions. Dumping the entire base in at once and hoping it gets tight isn’t professional preparation.
Driveways need more support for vehicles
Cars can safely drive over a properly built paver driveway with a driveway underlayment below the base. The underlayment is buried, not the driving surface, and it doesn’t carry the car by itself. It is one part of a complete layered system, not a substitute for adequate base depth.
For residential driveways, 6 to 8 inches of compacted base is a common starting range, not a universal specification.
Weak soil, clay or fill layers, poor drainage, grade changes, and erosion exposure can change the design. Heavier vehicles, repeated traffic, local requirements, and the condition of the prepared ground may call for 8 to 12 inches.
A driveway isn’t a patio with cars parked on it. Paving stones handle foot traffic, while vehicle loads concentrate where tires turn, brake, or sit in the same spot.
Proper Installation Keeps the Layers Working
Good material can still fail when the installation process puts it in the wrong place. I have seen fabric laid directly under sand, which does little to protect the actual base from mixing with the soil below.
Geotextile fabric belongs at the bottom of the excavated paver structure, directly over the prepared subgrade.
Start with the subgrade, not the pavers
First, excavate to the needed depth and establish the intended drainage slope. Correct soft or pumping areas before compacting the prepared ground. Don’t cover wet, unstable soil until it has been corrected.
The basic order is straightforward:
Excavate, remove unstable soil, and create the intended drainage slope.
Correct soft or pumping areas, then compact the prepared ground before covering it.
Lay the fabric across the full prepared area.
Overlap fabric seams according to the product specifications and site conditions.
Place and compact base gravel in manageable lifts with a plate compactor, following equipment and material guidance.
Add the sand layer, install pavers, secure edges, and fill joints.
Don’t stretch the fabric tight like a drum. It should lie flat against the prepared ground without large wrinkles or exposed gaps. Keep it protected as base material goes down, because exposed fabric can tear or shift under equipment.
Seams and edges deserve attention
Seams are not a place to rush. Fabric sections need enough overlap so soil cannot push between the panels when the base is compacted. The required overlap depends on the material, ground conditions, slope, and manufacturer guidance.
I also extend the fabric far enough to cover the full prepared footprint. Southwest Florida rainfall can expose weak edges or create erosion paths, so the finished drainage path must remain functional. An unprotected side can become the weak area where material starts moving.
Edge restraint is another detail that matters. Even a strong base can fail at the perimeter if the pavers have nothing holding them together. Good compaction, secure borders, joint sand, grading, and fabric work together. Fabric alone can’t prevent perimeter movement.
When Fabric Is Optional in Southwest Florida
On a small walkway or patio over firm, undisturbed, well-drained native sand, paver underlayment fabric may be optional. I do not tell homeowners they need it on every project because that is not honest.
Still, it can be affordable insurance on jobs with disturbed fill, clay pockets, repeated settlement, erosion, intense runoff, soft spots, or past base contamination. A non woven geotextile fabric may help separate layers when site conditions justify it, but it should not be prescribed automatically.
The cost of quality fabric is small compared with lifting a sunken patio later and rebuilding the base.
Warning signs before a rebuild
If you already have paving stones that are sinking, rocking, cracking, or holding water, do not assume loose joint sand is the only problem. I inspect the pavers, base, edges, and water flow together. A geotextile fabric layer may support separation, but it cannot correct every grading or drainage problem.
Pay close attention when you see:
Pavers that move underfoot or wobble when you drive over them, which may indicate weak support, edge movement, or trapped water.
Low areas that hold water after rain, possibly from grading problems, uneven support, or restricted runoff.
Joint sand washing out in the same location, which may signal concentrated flow, open edges, or erosion. Polymeric sand maintenance cannot correct a failed base or drainage problem.
Borders spreading apart or pavers pulling away from a screen enclosure, which may indicate edge failure, footing movement, or poor restraint.
A driveway repair beside a downspout, swale, or pool drainage area, where concentrated runoff may be affecting the base.
Pool decks and screen enclosures need extra care. Enclosure footings and adjacent paver areas are separate structures, so they can settle or move differently. Do not drill into footings or move screen anchors during a paver project without qualified guidance.
For larger excavation, driveway changes, or work near utilities, call Sunshine 811 before digging and confirm any local permit requirements. Fort Myers, Cape Coral, Bonita Springs, Punta Gorda, and Sarasota can have different rules for drainage and driveway work.
If the base has failed or you are planning a new project, have a qualified local professional review the soil, water flow, base depth, and nearby utilities before work starts.
Frequently Asked Questions
Is geotextile fabric required under pavers in Florida?
No, geotextile fabric is not required for every Florida paver project. It may be worthwhile over disturbed fill, soft spots, clay pockets, organic soil, erosion-prone areas, or ground that has settled before.
What type of fabric should go under pavers?
Non-woven geotextile fabric is often used when separation and filtration are the main goals. Woven fabric may be considered for some soft or weak areas where greater tensile strength is useful, but the choice should match the soil, drainage, traffic, and product specifications.
Where does geotextile fabric go under a paver system?
The fabric belongs at the bottom of the excavated paver structure, directly over the prepared and compacted subgrade. The aggregate base goes above it, followed by the leveling sand and pavers.
Can fabric prevent pavers from sinking?
Fabric can help prevent soil and aggregate from mixing, which may support a more stable base. It cannot correct inadequate base depth, poor compaction, improper grading, concentrated runoff, or a drainage system that is washing out the foundation.
How much base is needed under pavers?
A common starting range is 4 to 6 inches of compacted aggregate base for many patios and walkways, and 6 to 8 inches for residential driveways. Weak soil, heavy vehicles, poor drainage, fill, grade changes, and erosion exposure may require a deeper or specially designed base.
A Stable Paver Surface Starts Below Ground
The right fabric can’t fix every Florida paver problem. It can protect a properly built base when sandy or disturbed soil, erosion, or site drainage creates a need. Separation, compaction, drainage, correct base depth, and secure edges keep paving stones clean and level.
I’ve seen how fast a small low spot can spread after heavy Florida rain. Geotextile fabric under pavers can help protect the base when the ground is weak, disturbed, or likely to mix with it. It isn’t needed on every project, and it can’t correct a failed drainage design.
A lasting paver job is built from the ground up, not covered up at the surface.
A driveway can look beautiful all the way to the street, then fail where cars cross it every day. That street connection handles tire pressure, rain runoff, heat, and roadway movement. It can’t be treated like an ordinary patio border.
A well-built front apron gives your home a clean finished entrance and supports its broader outdoor living presentation. It also protects the base underneath and keeps water moving in the right direction. I have seen many driveways where the pavers looked fine at first, then the front row started sinking, spreading, or holding water after one wet season.
The best design begins with the street, the drainage, and the property line, not with the color of the paver.
Key Takeaways
A driveway apron handles turning tires, braking, rain runoff, heat, and roadway movement, so it needs stronger planning than a typical patio edge.
Confirm property lines, right-of-way rules, drainage paths, swales, culverts, and permit requirements before ordering materials or beginning street-side work.
Traffic-rated concrete pavers, a properly excavated and compacted base, suitable joint sand, and firm edge restraint work together to prevent shifting and settlement.
Plan the finished grade and water flow before installation, and inspect the apron regularly for loose pavers, missing joint sand, low spots, and washed-out areas.
What the street connection must handle in Florida
The paver driveway apron is the transition area between the street and your private driveway. On many Florida properties, part of that area may sit inside a public right-of-way, a swale area, or near a curb, sidewalk, culvert, or drainage inlet.
That means the apron has a harder job than the rest of the driveway. It must carry regular vehicle traffic without letting the pavers shift, while respecting the existing slope and drainage path.
Street traffic puts pressure on the front edge
Cars don’t roll straight into a driveway every time. They turn, brake, accelerate, and sometimes enter at an angle. Those forces push outward on the pavers at the front of the driveway.
A weak edge restraint can start opening up. Once joints widen, sand escapes, water gets below the pavers, and the problem keeps growing. The outer border needs firm support, not a few loose pavers sitting against asphalt.
I look closely at the existing street edge, curb condition, driveway width, and how vehicles enter. A narrow entrance with sharp turns needs more attention than a wide, straight driveway connection.
Florida rain can expose poor design fast
Southwest Florida rain doesn’t always come down slowly. A short storm can send a lot of water across a driveway, through a swale, and toward the road.
If an apron is set too low, water can collect at the garage side. If it’s raised too high or built across a drainage route, water may back up in the swale. Both situations can lead to erosion below the pavers.
The surface can be level and still be wrong if the base is washing out below it.
Check right-of-way rules before choosing materials
I never recommend ordering pavers until the homeowner confirms where private property ends and public right-of-way begins. A driveway connection may be allowed on your lot but restricted at the street. Before ordering, confirm the property line, easements, swale, culvert, sidewalk, and drainage path.
The City of Fort Myers states that residential driveway construction requires an Engineering Division permit. This jurisdiction-specific example shows that the street connection isn’t always a simple cosmetic upgrade.
Rules change by city, county, and road owner
Fort Myers, Cape Coral, Bonita Springs, Punta Gorda, Sarasota, and unincorporated Lee County can all have different requirements. Requirements can vary by city, county, state agency, roadway classification, and project location.
For projects near a state-maintained route, review the FDOT permitting process before work begins. This is a state-agency process, not a universal rule for every Florida road. If the driveway connects to a county road, the county may have its own application, drawing, inspection, or drainage requirements.
Some jurisdictions allow architectural pavers in the right-of-way under strict conditions. Others only allow them behind the property line. I always tell homeowners to get the local answer for their address, rather than rely on what worked for a neighbor.
Drainage drawings may be part of approval
A permit review may require a survey or site plan showing property lines, swales, easements, drainage direction, sidewalks, culverts, and proposed connection dimensions. Ask the reviewing authority what documentation applies before work begins.
This isn’t paperwork for paperwork’s sake. A driveway connection can block the route where water is supposed to travel. In Florida, drainage problems can lead to standing water, soft soil, mosquito concerns, or disputes with the city.
As one jurisdiction-specific example, Lee County’s driveway administrative code says pavers placed next to flexible pavement require a concrete header curb. That local rule isn’t universal, but it shows why the asphalt edge alone may not provide stable restraint.
Choose pavers made for driveway use
A driveway apron needs pavers rated for vehicle traffic. Thin decorative units that may work for patios and walkways are not the right product at a street connection.
Concrete pavers are the most common traffic-rated choice for Florida driveways because they come in many colors, shapes, and finishes. Concrete pavers are practical to repair after utility work or settlement, with design flexibility for many paver styles. Porcelain pavers may suit some driveways, but their traffic rating, installation system, base, and local approval must support vehicle loads.
A practical choice for most aprons
Modern pavers often have small nubs on their sides. These create consistent joints between units, leaving space for joint sand and helping the pieces interlock.
For a driveway, I like pavers with a shape and thickness made for traffic. Follow the manufacturer’s traffic classification and approved local design, rather than choosing only for the home’s exterior color. A wide driveway with trucks, trailers, or frequent service vehicles may need a stronger design than a two-car household driveway.
Florida sun will cause some color fade in colored pavers over time, especially with darker paver styles. That is normal weathering. I tell homeowners to choose a blend that suits nearby outdoor living spaces and the home’s broader hardscaping plan.
Brick and stone have different tradeoffs
A clay brick paver system has a classic look, holds color well, and may limit choices or cost more. It also needs the same strong base and edge support as other driveway materials.
Natural stone can look elegant, but bluestone and granite are usually more expensive and may need more cutting. With bluestone, check thickness, finish, and slip resistance for driveway use, since requirements may differ from pool decks.
Good paver durability depends on the entire system, not only the surface material. For most Southwest Florida homes, a quality concrete system gives the best balance of appearance, repair access, and cost control. The best-looking material won’t stay beautiful if the base below it is weak.
Build the base before laying a single paver
The visible paver is only the top layer. Proper paver installation begins with a prepared base, not the visible unit. Long-term strength comes from excavation, stable soil, compacted aggregate, bedding sand, joint sand, and proper edge restraint.
A front apron is not the place to save money by reducing base depth or skipping compaction. That mistake may not show right away. It usually appears after rain, traffic, and time.
Compaction happens in layers
The old surface and unstable soil should be removed to the planned depth. The required base depends on soil conditions, traffic, roadway conditions, the approved design, and local requirements.
Aggregate is installed and compacted in controlled lifts. It should not be dumped in all at once and pressed down at the end.
Bedding sand is used to set the pavers to final grade. It is not a fix for a soft or uneven base. Adding loose sand under a sinking paver may make it look better for a short time, but it does not replace compacted aggregate that has washed out.
Geotextile fabric can help separate sandy subgrade from the base on certain properties. It is useful where soil conditions call for it, but it is not a substitute for excavation, proper stone, or compaction.
Edge restraint keeps the pattern locked
Every paver field wants to move outward under vehicle traffic. A solid perimeter restraint holds the layout together, especially at the street-facing edge and both sides of the apron.
The appropriate restraint depends on soil, traffic, roadway conditions, paving material, the approved design, and local requirements. Where applicable, an approved design may call for a concrete header curb or another heavy-duty edge restraint.
I also check utility locations before digging. Call 811 before excavation. Irrigation lines, electric, cable, water, and drainage pipes can all be close to a driveway connection.
Use a pattern that can take turning tires
Paver patterns are not only about style. They affect how traffic loads move across the surface and how many cuts are needed at the edges.
For a driveway apron, I usually favor an interlocking layout over a simple straight-running pattern. Interlocking pavers suit turning tires and braking forces. Performance also depends on the product, base, edge restraint, joint condition, and installation quality.
Herringbone pattern suits many driveways
A 45-degree or 90-degree herringbone layout locks pavers together in several directions. With a proper base, edge restraint, and sound joints, a herringbone pattern can resist shifting under braking and turning.
A running bond pattern can look clean and require fewer cuts in a straight driveway. Still, its long continuous joints may not be my first choice at a busy street connection. A basket weave pattern can create a traditional appearance, though its performance depends on the paver product and installation details.
Curves, circles, and decorative borders can connect the driveway to the home’s exterior and outdoor living areas. They also increase cutting, labor, and material waste. I like using a border where it frames the driveway without making the street connection too busy.
Order enough pavers for cuts and future repairs
Measure the apron’s length and width, then multiply them for square footage. For illustration only, a 14-foot-wide apron extending 8 feet deep equals 112 square feet. That example isn’t a required apron dimension.
The cutting allowance varies with the layout, borders, curves, edge cuts, and supplier packaging. Confirm the coverage guidance with your supplier before ordering, especially for detailed designs.
Layout type
Cutting allowance to confirm
Straight running bond
Often lower, depending on edge cuts
Herringbone with straight edges
Moderate, depending on the layout and product
Curves, borders, and detailed cuts
Often higher, depending on the design
Keep a few unopened pavers for later repairs. Color batches can vary, and an exact match may be difficult years down the road.
Plan water flow before the finished grade is set
A well-planned apron should direct water away from the house without creating a dam at the curb or swale. That depends on accurate elevations and a clear drainage route.
I inspect the driveway after rain when possible. Standing water, worn soil, algae marks, exposed roots, and washed-out joints show where water already wants to go.
Don’t block a swale or culvert
Many Florida homes depend on front-yard swales to move surface water. Filling, flattening, or bridging one carelessly can stop drainage and create trouble for the whole lot.
Coordinate the apron with the existing swale, drainage route, and surrounding yard through landscape design. Landscape design can’t override a required drainage path.
The driveway may need a culvert or a permitted connection detail. It may also need to tie into an existing sidewalk or curb at a required elevation. Make these decisions before the base is installed.
A county right-of-way permit example shows how driveway work, utilities, and public property can fall under one review process. It illustrates a permitting concept and may not represent Southwest Florida requirements. Confirm local rules before street-side work begins.
Keep roof water away from the paver edge
Downspouts shouldn’t dump directly beside the apron. Fast roof runoff can carve channels into the sand and base, causing low spots near the house or driveway edge.
Extensions, gutters, drains, or a revised grading plan may be needed before the pavers are set. If water is already sitting near the driveway after storms, fix that condition first. Proper drainage also helps keep outdoor living areas usable after rain.
New pavers shouldn’t cover an old drainage problem.
Maintain the apron without damaging the joints
The street-facing apron doesn’t need complicated care, but regular paver maintenance helps protect the appearance and usability of your home’s outdoor living areas. I recommend looking at the front edge after heavy rain and a few times each year.
Watch for loose pavers, missing joint sand, widening gaps, low spots, moving borders, and water that remains after the surrounding pavement dries.
Clean carefully and replace lost joint sand
Pressure washing can remove dirt, algae, and stains, but excessive pressure can chip the paver face and blast sand out of the joints. That sand helps keep the pavers locked together.
After cleaning, replace missing joint material with the right polymeric sand when appropriate. It helps stabilize sound joints and reduce weed growth, but it can’t correct a failed base, washed-out bedding layer, or broken edge restraint.
If a section keeps sinking, I lift the affected pavers, inspect the base, correct the cause, compact the area, and reset the surface. Replacing only the top paver is often a temporary patch.
Frequently Asked Questions
What is a driveway apron?
A driveway apron is the transition area where a private driveway connects to the public street. It carries vehicle traffic while also managing the change in grade, drainage, and edge conditions near the roadway.
Do I need a permit for a paver driveway apron in Florida?
Permit requirements vary by city, county, road owner, and project location. The work may involve a public right-of-way, swale, culvert, sidewalk, or drainage route, so confirm the requirements with the local authority before construction.
Which pavers and patterns are best for a driveway apron?
Use pavers rated for vehicle traffic rather than thin decorative units intended for patios or walkways. Interlocking layouts such as 45-degree or 90-degree herringbone can suit turning and braking forces when installed over a proper base with adequate edge restraint.
How do I prevent driveway apron pavers from sinking or spreading?
The installation needs stable soil, a properly excavated and compacted aggregate base, suitable bedding sand, sound joints, and firm perimeter restraint. Correct drainage is also essential because water washing through the base can cause settlement even when the surface initially looks level.
How should I maintain a paver driveway apron?
Inspect the front edge after heavy rain and watch for loose pavers, missing joint sand, widening gaps, low spots, and standing water. Clean carefully, replace lost joint material when appropriate, and correct the base or drainage problem instead of only resetting the visible paver.
A strong street connection starts below the surface
The street connection should look welcoming, but it must work harder than the rest of the driveway. The correct permit path, drainage plan, traffic-rated pavers, compacted base, and firm edge restraint all matter.
After more than 20 years working with Florida pavers, I know the small front section near the street can decide whether a driveway stays level or starts failing early. A solid base and proper drainage are never optional details. Together, drainage, appearance, and access support outdoor living around the property.
If you are planning a driveway in Fort Myers, Cape Coral, Bonita Springs, Punta Gorda, Sarasota, or nearby areas, Get a Free Quote and I can review the street connection, drainage, layout, and paver options before the work begins.
